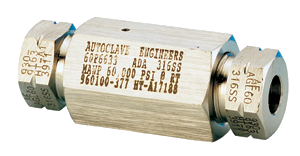

Medium Pressure Couplings and Bulkheads
Autoclave Engineers Slimline couplings and bulkhead connectors are used to make reliable high pressure tube connections up to 20,000 psi.
| Autoclave Engineers Medium Pressure Couplings (316SS construction rated at 20,000 psi) |
 |
|
|
| Tube Size (O.D.) | Straight | Bulkhead | Union |
| 1/4" | 20FX4466 | 20BFX4466 | 20UFX4466 |
| 3/8" | 20FX6666 | 20BFX6666 | 20UFX6666 |
| 9/16" | 20FX9966 | 20BFX9966 | 20UFX9966 |
| 3/4" | 20FX12 | 20BFX12 | 20UFX12 |
| 1" | 20FX16 | 20BFX16 | 20UFX16 |
| 1-1/2" (15,000 PSI) | 15FX24 | 15BFX24 | 15UFX24 |
